Free tips, life hacks, and mini-guides on 3D visualization and interior design
Learn the intricacies of work and the secrets of realism — without payment
Free
CoronaWire
For a variety of rendering styles, for interesting reels, for covers, to show geometry, etc.
Free

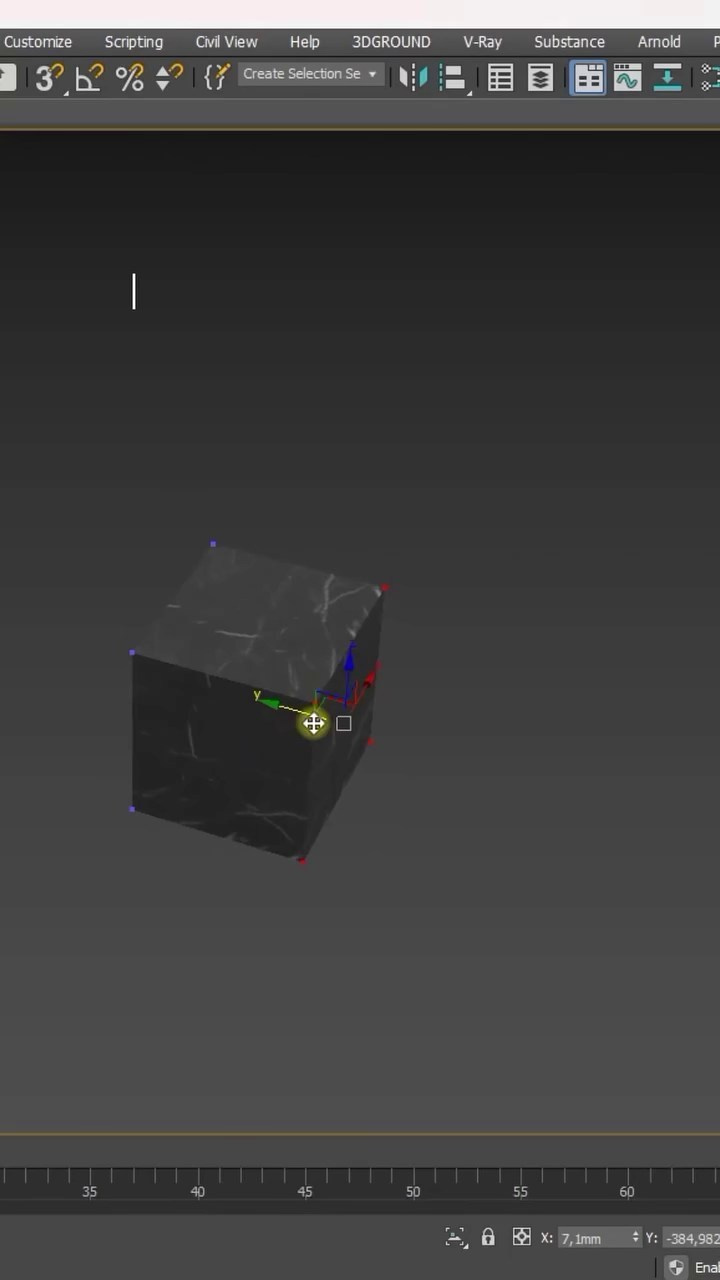

AutoPivot for 3ds Max
How does the script work?
1. Automatically detects the object’s center of mass.
2. Quickly moves the pivot point to the desired location: the object’s center, base, or any other position.
3. Works with multiple objects simultaneously—perfect for large-scale scenes!
Free

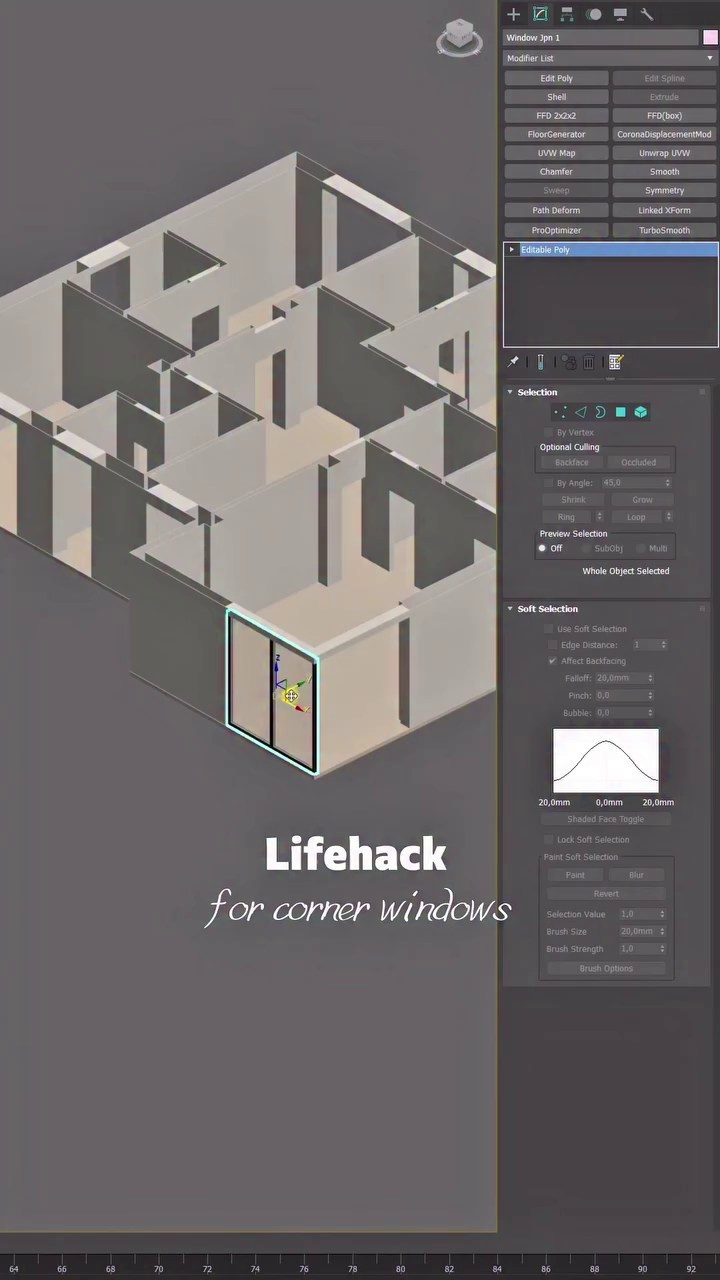

Corner windows
How to quickly make a corner window using Symmetry
Free

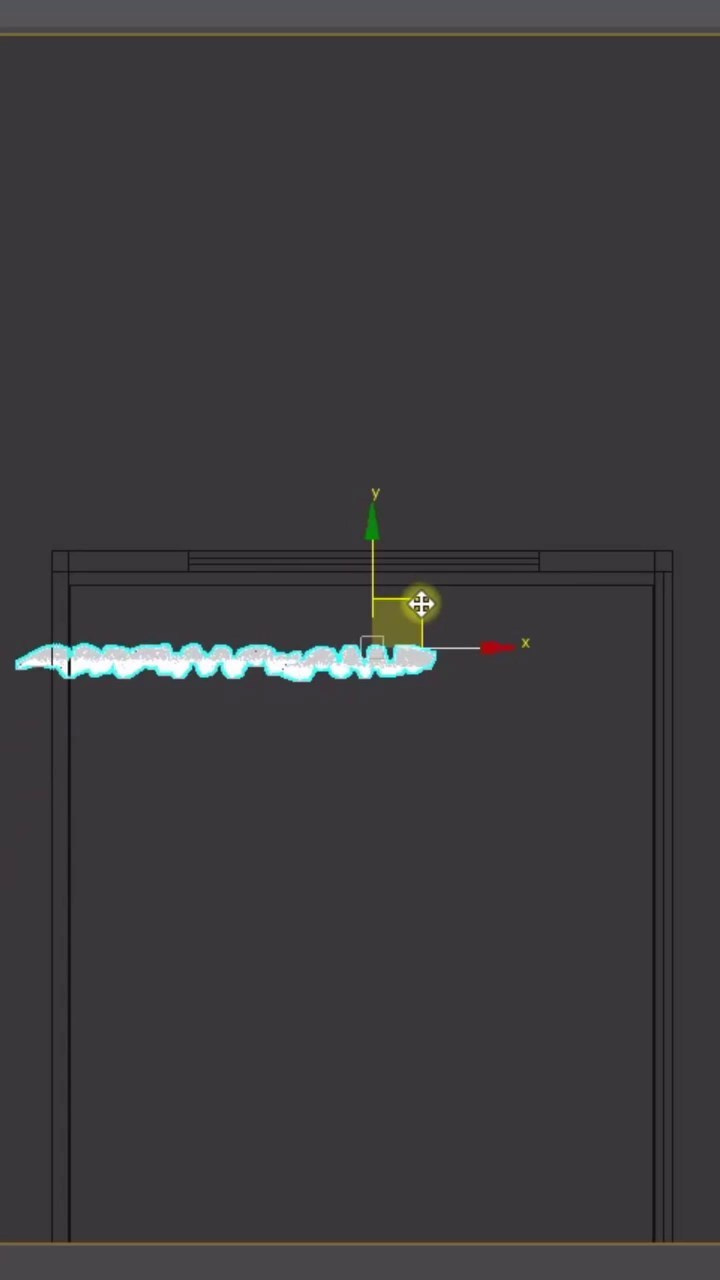

Shift function (Ribbon panel) for editing models
One of the ways to edit models (in this case, curtains)
1) Select the curtains in the editable poly element
2) Go to the ribbon panel
3) Freeform tab
4) Shift key
5) Like an artist with a brush, we can gently move those parts of the curtain that stick to the wall
Free
How to create a 3D panel in 3D Max
Create a 3D panel using Spacing Tools
Free
How to get tree shadows
1. Place the sun, and if we want to achieve an evening sunset, then move it closer to the horizon.
2. Sun settings. Adjust the intensity and size, setting it to less than 3-5, so the image is easier to read.
3. Find black and white images of trees on Google.
4. Set a plane with the same dimensions as the image and place it opposite the window from the outside.
5. Insert the black and white map into the diffuse and opacity slots (reflection/refraction = 0).
Free
Preserve UVW
To prevent the texture from being distorted when editing a polygonal object in 3d Max, enable the Preserve UVW checkbox.
FREE
Function in the plugin Smart Merge

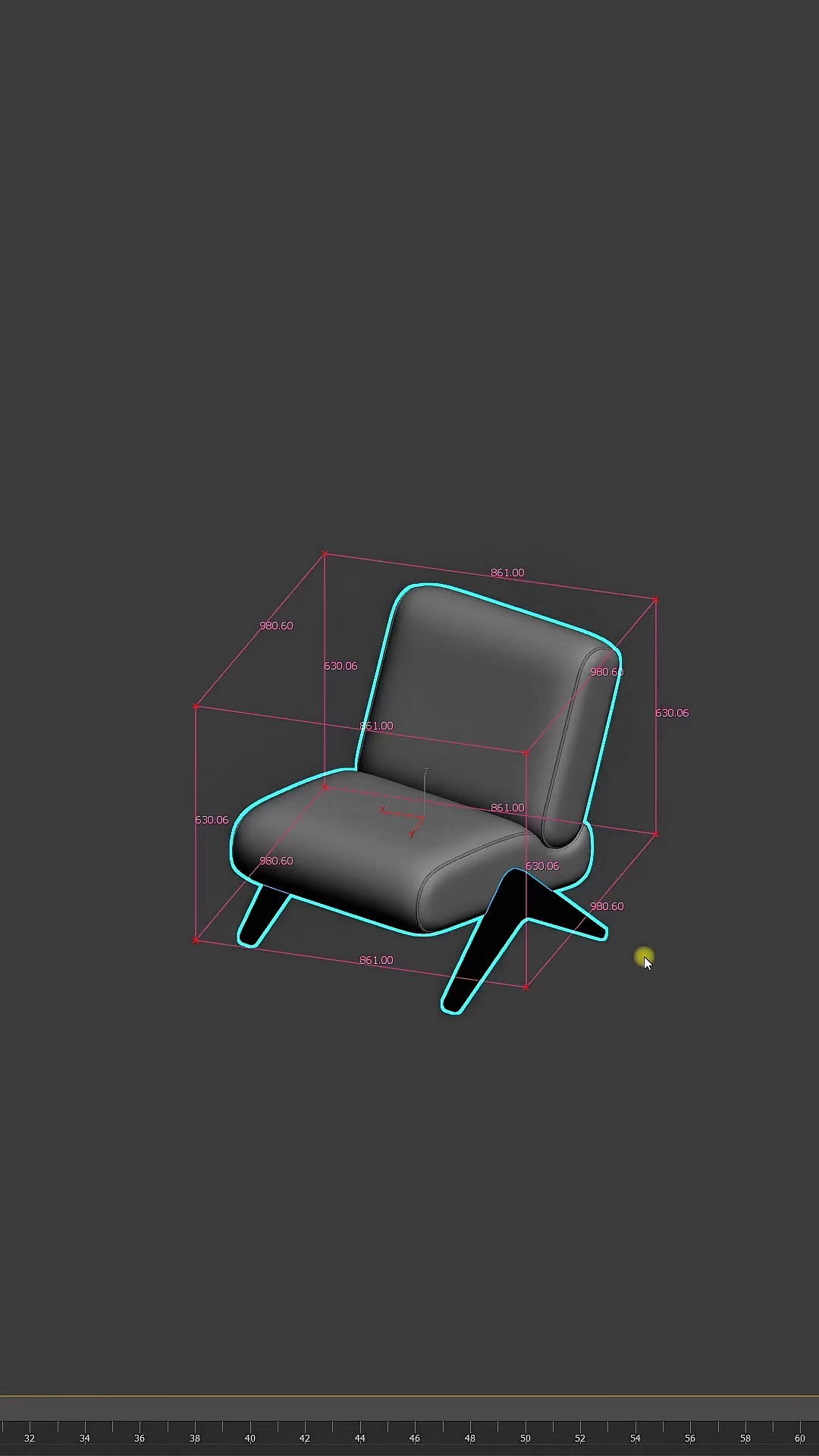

A handy feature for quick measurements in the Smart Measure plugin
FREE
How to speed up the process of working with modifiers in 3ds Max
To add them to the quick access toolbar, just a couple of clicks are required: Modify -> Configure Modifier sets -> specify the desired number of cells in the total buttons -> drag the desired modifiers and click OK. This will save you from scrolling and frantically searching through the modifier list, saving you time.
FREE

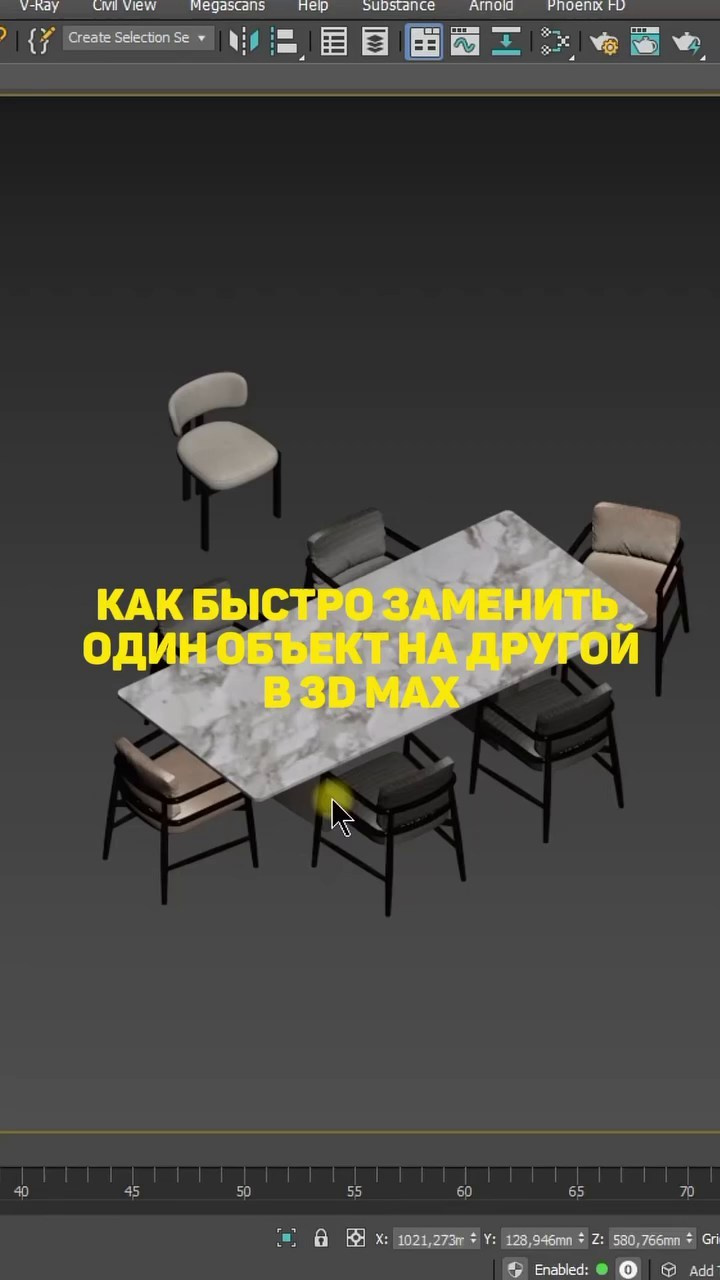

How to quickly replace one object with another
The Subtitute modifier will help with this.
How to:
1. In Edit Poly, use Attach to assemble the model parts into a single object.
2. Select the objects you want to replace.
3. Apply the Subtitute modifier.
4. Click on pick scene object.
5. Select the object to replace.
6. Click yes.
FREE
Settings Close up
How to set them up correctly
